Grand Prairie Municipal charts & airport diagram

What KGPM publishes

Airport diagram

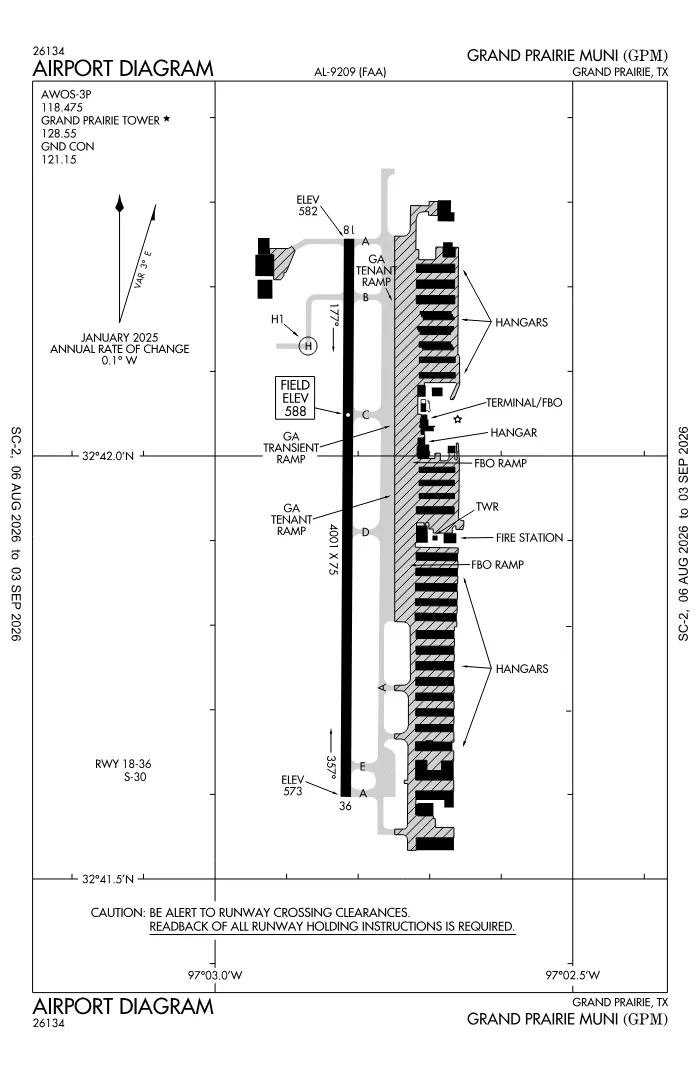

The FAA airport diagram for Grand Prairie Municipal — runways, taxiways, ramps and hold short lines. Shown in the browser above; the FAA PDF ↗ is the authoritative copy.

Instrument approaches at KGPM

Grand Prairie Municipal has 2 published instrument approaches of 2 types (RNAV (GPS) and VOR). 1 of them offers vertical guidance; RNAV (GPS) gives the lowest minimums.

No published approach to runway 18: landing on that end in instrument conditions means a circling approach or a visual after breaking out.

Departures and arrivals

Grand Prairie Municipal publishes 9 departure procedures (SIDs) — charted routes from the runway to the en route structure, assigned by ATC in the clearance. It also publishes 7 arrivals (STARs), the mirror image: charted routes from the en route structure down to where the approach begins. Each one is in the list at the foot of this page with its continuation pages.

Takeoff, alternate and surface information

• Takeoff minimums are published for KGPM. Standard is 1 statute mile visibility for one and two engine aircraft (½ mile for more than two) unless this section says otherwise; Part 91 operators are not bound by them but the obstacle notes apply to everyone.
• Non standard alternate minimums are published: if you file KGPM as an IFR alternate, the required forecast is higher than the default 600-2 for precision or 800-2 for non precision approaches. Check the alternate rule tool.
