Barkley Regional (PAH · KPAH) in Paducah, KY publishes 12 FAA charts, including 7 instrument approaches (ILS, RNAV (GPS), VOR). Every one links straight to the current FAA PDF. · Open on the map
All of Barkley Regional — runways, frequencies, charts and live weatherLowest minimums here: ILS with vertical guidance · Every chart below links straight to the current FAA PDF.
What KPAH publishes
Airport diagram

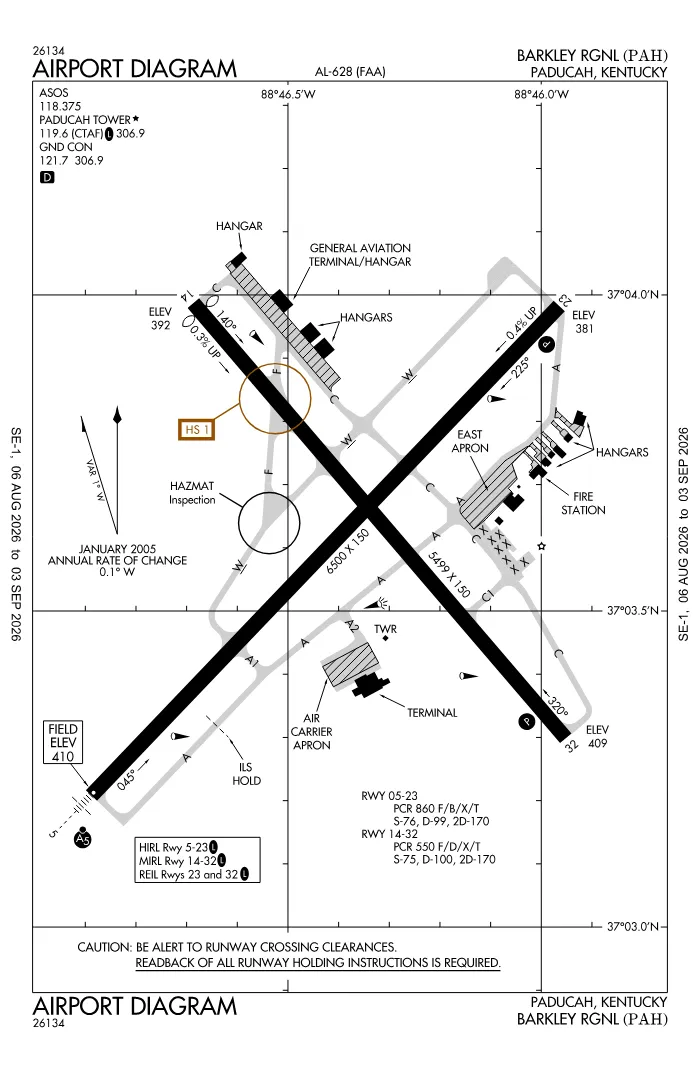

The FAA airport diagram for Barkley Regional — runways, taxiways, ramps and hold short lines. Shown in the browser above; the FAA PDF ↗ is the authoritative copy.
Instrument approaches at KPAH
Barkley Regional has 7 published instrument approaches of 3 types (ILS, RNAV (GPS) and VOR). 5 of them offer vertical guidance; ILS gives the lowest minimums.
Hot spots at KPAH
The FAA publishes 1 hot spot here but no shapes, so they are not drawn on the map. Brief the descriptions against the airport diagram.
- HS 1 Rwy 14–32 at Twy F: Short taxi risk after turning on Twy F.
Locations on the airport surface with a history of confusion or runway incursions — brief them against the diagram before taxi. Source: FAA Chart Supplement, reproduced verbatim on the 56-day cycle; the numbers match the circled HS markers on the diagram.
Takeoff, alternate and surface information
- Takeoff minimums are published for KPAH. Standard is 1 statute mile visibility for one and two engine aircraft (½ mile for more than two) unless this section says otherwise; Part 91 operators are not bound by them but the obstacle notes apply to everyone.
- Non standard alternate minimums are published: if you file KPAH as an IFR alternate, the required forecast is higher than the default 600-2 for precision or 800-2 for non precision approaches. Check the alternate rule tool.
All 12 charts, as a list every plate with its direct FAA link
Airport documents 3
- APD Airport diagram ↗
- A/FD Chart Supplement ↗
- HOT HOT SPOT ↗
Approaches 7
- ILS ILS OR LOC RWY 05 ↗ Rwy 05
- VOR VOR RWY 23 ↗ Rwy 23
- VOR VOR RWY 05 ↗ Rwy 05
Minimums 2
Frequently asked
Where can I get the KPAH airport diagram?
The FAA publishes the Barkley Regional airport diagram as part of the d-TPP (Digital Terminal Procedures Publication), reissued every 28 days. The current one is linked on this page, along with a full-page preview.
Does KPAH have an instrument approach?
Yes. Barkley Regional has 7 published instrument approaches: ILS, RNAV (GPS), VOR. At least one offers vertical guidance.
Are there hot spots at KPAH?
Yes. The FAA publishes 1 hot spot at Barkley Regional — locations on the airport surface with a history of confusion or runway incursions. Each one's Chart Supplement description is on this page, numbered the way the airport diagram marks it.
What is the lowest approach at KPAH?
ILS to runway 05 is the approach type with the lowest published minimums at Barkley Regional. It has vertical guidance, so it is flown to a decision altitude rather than a minimum descent altitude. Actual minimums vary by aircraft category and are on the plate.
More about KPAH
Charts are the FAA d-TPP (d-TPP cycle 2609 (2026, cycle 9)) and Chart Supplement, reissued on the 28-day chart cycle and linked directly from the FAA. For planning and education only; always fly the current chart.
