Juneau International Airport charts & airport diagram
Juneau International Airport (JNU · PAJN) in Juneau, AK publishes 9 FAA charts, including 2 instrument approaches (RNAV (GPS), LDA). Every one links straight to the current FAA PDF.
All of Juneau International Airport — runways, frequencies, charts and live weatherAirport diagram

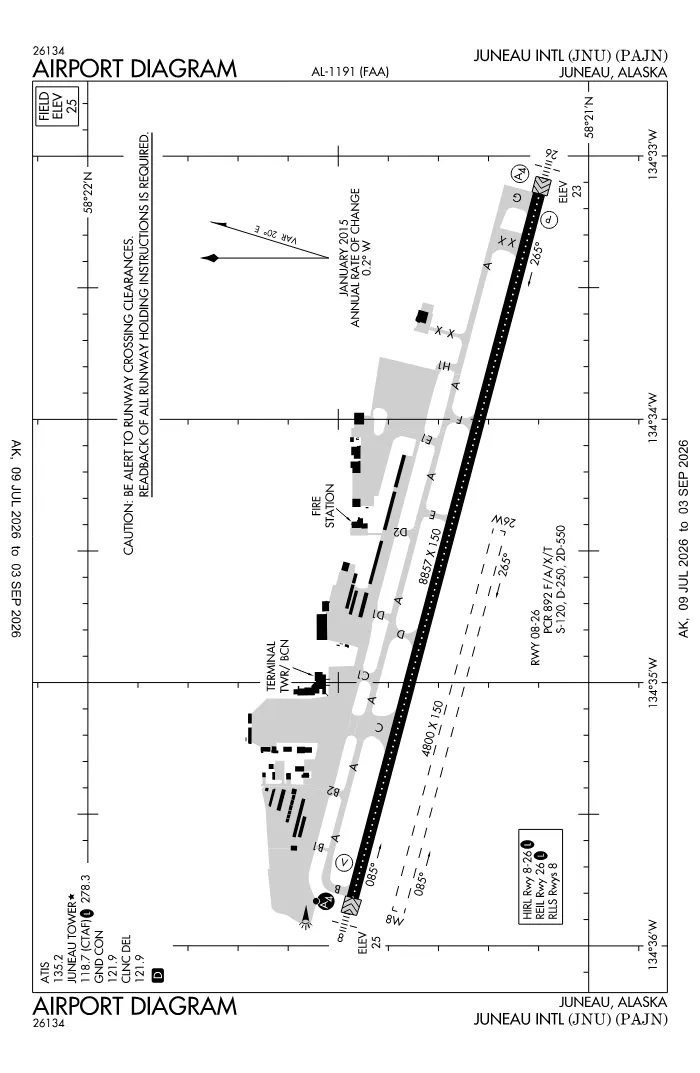

The FAA airport diagram for Juneau International Airport — runways, taxiways, ramps and hold short lines.
Airport documents
- APD Airport diagram ↗
- A/FD Chart Supplement ↗
- A/FD Airport notices ↗
Approaches
- RNAV RNAV (GPS) Z RWY 08 ↗ Rwy 08 · Z
- LDA LDA X RWY 08 ↗ Rwy 08 · X
Departures
Minimums
Frequently asked
Where can I get the PAJN airport diagram?
The FAA publishes the Juneau International Airport airport diagram as part of the d-TPP (Digital Terminal Procedures Publication), reissued every 28 days. The current one is linked on this page, along with a full-page preview.
Does PAJN have an instrument approach?
Yes. Juneau International Airport has 2 published instrument approaches: RNAV (GPS), LDA. At least one offers vertical guidance.
Does PAJN have an obstacle departure procedure?
Yes. Juneau International Airport publishes an ODP. Under Part 91 it is not mandatory in most cases, but it is the charted way to clear terrain and obstacles after takeoff in instrument conditions.
More about PAJN
Charts are the FAA d-TPP and Chart Supplement, reissued on the 28-day chart cycle and linked directly from the FAA. For planning and education only; always fly the current chart.
