Pocatello Regional charts & airport diagram

Pocatello Regional (PIH · KPIH) in Pocatello, ID publishes 9 FAA charts, including 4 instrument approaches (ILS, RNAV (GPS), VOR). Every one links straight to the current FAA PDF. · Open on the map

All of Pocatello Regional — runways, frequencies, charts and live weather

PDF ↗

Lowest minimums here: ILS with vertical guidance · Every chart below links straight to the current FAA PDF.

What KPIH publishes

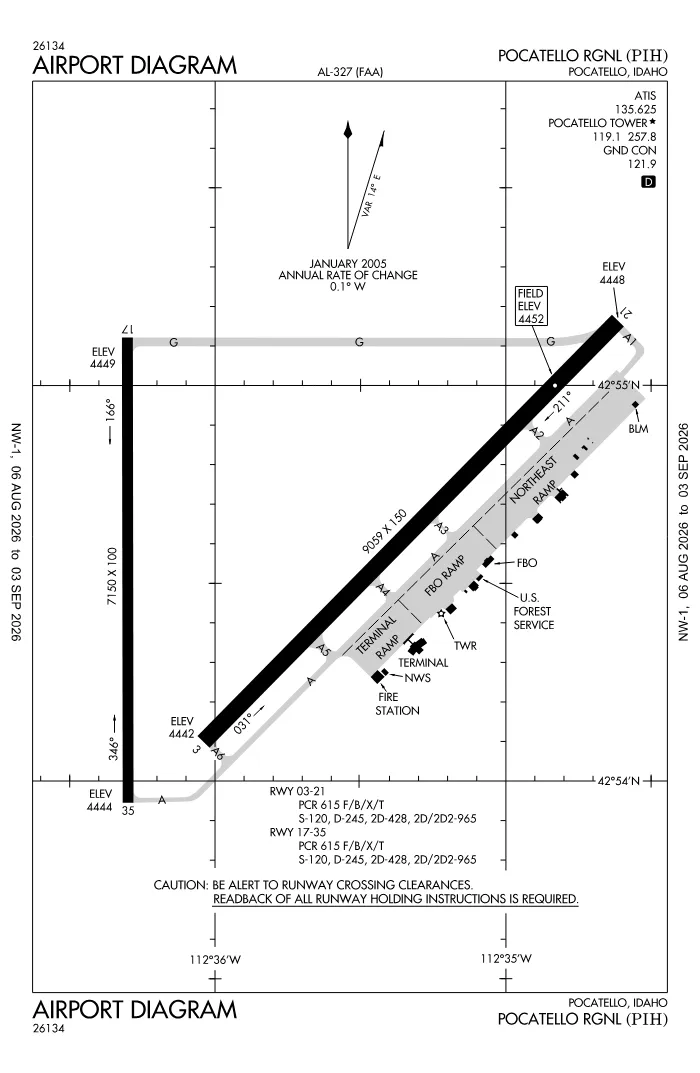

Airport diagram

The FAA airport diagram for Pocatello Regional — runways, taxiways, ramps and hold short lines. Shown in the browser above; the FAA PDF ↗ is the authoritative copy.

Instrument approaches at KPIH

Pocatello Regional has 4 published instrument approaches of 3 types (ILS, RNAV (GPS) and VOR). 3 of them offer vertical guidance; ILS gives the lowest minimums.

No published approach to runway 17 and 35: landing on those ends in instrument conditions means a circling approach or a visual after breaking out.

Takeoff, alternate and surface information

Takeoff minimums are published for KPIH. Standard is 1 statute mile visibility for one and two engine aircraft (½ mile for more than two) unless this section says otherwise; Part 91 operators are not bound by them but the obstacle notes apply to everyone.
Pocatello Regional has an obstacle departure procedure (ODP): the charted way to clear terrain and obstacles after takeoff in instrument conditions. ATC does not assign it; under Part 91 it is recommended rather than required, and it is what you fly when no SID or radar vectors have been given.
Non standard alternate minimums are published: if you file KPIH as an IFR alternate, the required forecast is higher than the default 600-2 for precision or 800-2 for non precision approaches. Check the alternate rule tool.

All 9 charts, as a list every plate with its direct FAA link

Airport documents 2

APD Airport diagram ↗
A/FD Chart Supplement ↗

Approaches 4

Departures 1

SID KNURL ONE (OBSTACLE) ↗

Minimums 2

MIN TAKEOFF MINIMUMS ↗
MIN ALTERNATE MINIMUMS ↗

Frequently asked

Where can I get the KPIH airport diagram?

The FAA publishes the Pocatello Regional airport diagram as part of the d-TPP (Digital Terminal Procedures Publication), reissued every 28 days. The current one is linked on this page, along with a full-page preview.

Does KPIH have an instrument approach?

Yes. Pocatello Regional has 4 published instrument approaches: ILS, RNAV (GPS), VOR. At least one offers vertical guidance.

What is the lowest approach at KPIH?

ILS to runway 21 is the approach type with the lowest published minimums at Pocatello Regional. It has vertical guidance, so it is flown to a decision altitude rather than a minimum descent altitude. Actual minimums vary by aircraft category and are on the plate.

Does KPIH have an obstacle departure procedure?

Yes. Pocatello Regional publishes an ODP. Under Part 91 it is not mandatory in most cases, but it is the charted way to clear terrain and obstacles after takeoff in instrument conditions.

More about KPIH

Charts are the FAA d-TPP (d-TPP cycle 2609 (2026, cycle 9)) and Chart Supplement, reissued on the 28-day chart cycle and linked directly from the FAA. For planning and education only; always fly the current chart.
