Volk Field Private
VOK · KVOK · Camp Douglas, WI · Towered · Print kneeboard

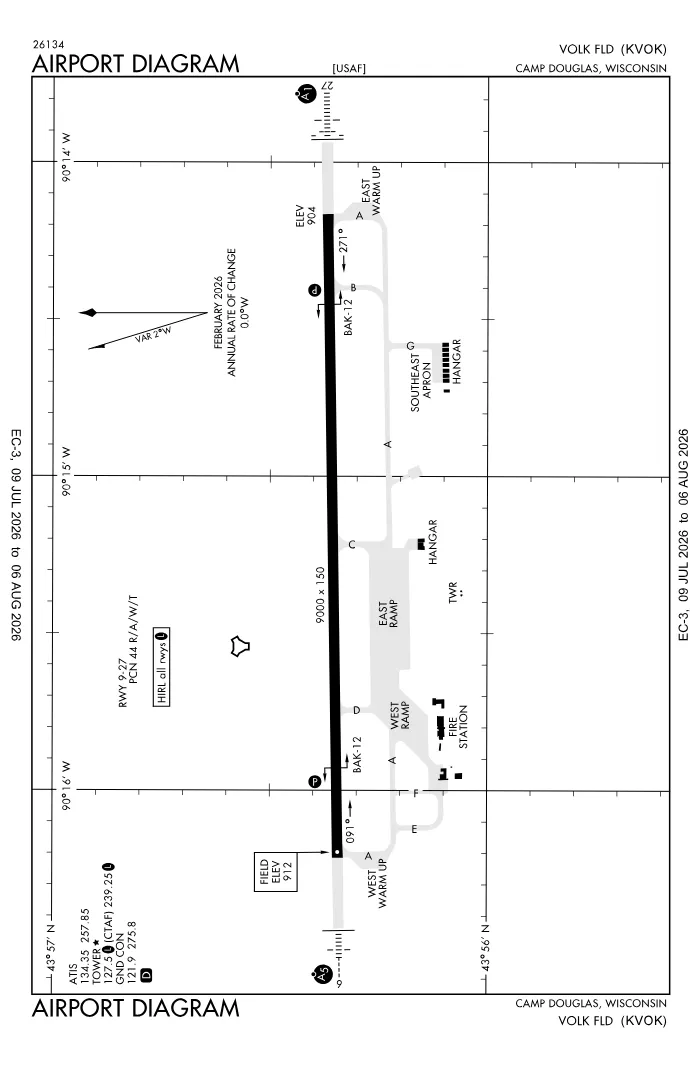

FAA airport diagramView full size ↓ Nearby now
Loading…
Weather
METAR observed
Loading current weather…
TAF forecast
Loading forecast…
Sun & FAA night2026-08-04 · night begins 08:54 PM
| Event | Local (CDT) | UTC |
|---|---|---|
| Morning civil twilight Loggable night ends | 05:20 AM | 10:20Z |
| Sunrise | 05:52 AM | 10:52Z |
| Sunset | 08:21 PM | 01:21Z |
| Evening civil twilight Loggable night begins | 08:54 PM | 01:54Z |
Plan a flight from KVOK
Past 24 hours category · wind · ceiling · visibility trends
Loading station history…
Density altitude today projected curve · departure window · takeoff roll
Winds aloft NOAA forecast · 3,000 to 53,000 ft
Loading winds aloft…
Advisories
NOTAMs
Loading NOTAMs…
Pilot reports
Loading PIREPs…
Airspace hazards
Checking advisories…
Runways
RWY 27RIGHT trafficRP · charted
- Heading
- 269° mag · 269° true
- Dimensions
- 9,000 × 150 ft
- TPA
- 1,900 ft MSL (≈1,000 AGL) · standard
- Surface
- Concrete
- Lights
- 4-light PAPI (right) (2.85°) + ALSF1
- ILS
- ILS · CAT I · LOC 108.5 (VOK) · GS 2.85°
- CTAF
- 127.5
More details — RWY 27
- Threshold elev
- 904 ft
- Threshold crossing height
- 53 ft
- TDZ elevation
- 905 ft
- Arresting gear
- BAK-12
Pattern side: FAA NASR · TPA standard 1,000 ft AGL (not charted) · layout: FAA runway-end coordinates
| Runway | Length | Your margin |
|---|---|---|
| 09/27 | 9,000 ft |
Prefer one flat page? Full runway details for KVOK → · New to pattern entries? The 45° entry, explained → · Teaching here? Print the KVOK kneeboard →
Comms & NavAids
Communication frequencies
Before taxi
“Volk”Taxi & takeoff
“Volk”Departure & arrival
“Volk”Also
ATC assigns the exact frequency (in your clearance or on handoff) — which one depends on your SID (departing) or STAR (arriving).
By procedure & sector (11 frequencies)
| Frequency | Used by |
|---|---|
| 34.2 | RANGE CTL (HARDWOOD RANGE) |
| 239.25 | LCL/P |
| 243.0 | EMERG |
| 244.875 | APCH/P DEP/P |
| 257.85 | ATIS |
| 260.4 | RANGE CTL (SHEBOYGAN RANGE) |
| 269.375 | CAMP DOUGLAS RCAG (LOW) |
| 275.8 | GND/P |
| 297.75 | RANGE CTL (HARDWOOD RANGE) |
| 358.8 | RANGE CTL (HARDWOOD RANGE) |
| 372.2 | PTD |
Source: FAA NASR (current 28-day cycle).
Instrument landing systems
RWY 27
| Runway | ILS |
|---|---|
| RWY 27 | ILS · CAT I · LOC 108.5 (VOK) · GS 2.85° |
Source: FAA NASR (current 28-day cycle).
Nearby navigation aids
VOK 110.40 · DLL 117.00
| NavAid | Type | Freq · ch | Range | Radial / Dist magnetic |
|---|---|---|---|---|
| VOK · Volk | TACAN | 110.40 · 41X | — | r133° / 0.3 NM |
| DLL · Dells | VORTAC | 117.00 · 117X | High | r315° / 31.5 NM |
Prefer one flat list? All KVOK frequencies →
Charts & procedures
Lowest minimums here: ILS with vertical guidance · VFR sectional →
Airport info
From the field
Do you run KVOK, or an FBO, flight school, or shop on it? Claim your listing to keep fuel, fees, hours, and services current.
Airport information
- ICAO / IATA
- KVOK / VOK
- Coordinates
- 43.9390, -90.2534
- Elevation
- 912 ft MSL
- Magnetic variation
- 0E
- Sectional chart
- CHICAGO
- Airport use
- Private
- Control tower
- Yes
- Tower hours
- 1400-2200Z++ MON-FRI; EXC HOL, CLOSED OTHER TIMES EXCEPT VALIDATED OVERSEAS OR ANG MSN, CK NOTAM FOR CURRENT AFLD HR.
- Airspace
- Class D · CLASS D SVC 1400-2200Z++ MON-FRI, EXC HOL, CLSD OTHER TIMES EXC VALIDATES OVERSEAS OR ANG MSN, CK NOTAM FOR CURRENT AFLD HR; OTHER TIMES CLASS G
- ARTCC
- CHICAGO (ZAU)
- Flight service (FSS)
- GREEN BAY · 122.2 · 1-800-WX-BRIEF
- NOTAM facility
- GRB
- Attendance
- MON-FRI 1400-2200Z++
- Beacon
- white-green (SEE RMK)
- Segmented circle
- No
- Wind indicator
- yes
- Activated
- 1941/01
- Distance from city
- 1 N
Night operations
- Airport lighting
- SEE RMK
- Rotating beacon
- white-green · SEE RMK
- Pilot-controlled lighting
- WHEN ATCT CLSD ACTVT MALSR RWY 09; ALSF-1 RWY 27; PAPI RWY 9 & 27; HIRL RWY 09/27 - CTAF OR 239.25. on 127.5 — Chart Supplement ↗
Runway lighting aids — 09: 4-light PAPI (left) + MALSR · 27: 4-light PAPI (right) + ALSF1.
FAA night windows (civil twilight, loggable night §1.1, currency §61.57) are under Sun & FAA night in the Weather section.
Services fuel · repairs · oxygen · attendance
- Bulk oxygen
- HIGH/LOW
- Airframe service
- NONE
- Powerplant service
- NONE
- Other services
- Cargo
Ownership & management 2 contacts
Remarks FAA · 31 notes
General
- RSTD: RECOMMEND USE AS EMERG ARPT ONLY WHEN RQR TO LAND AS SOON AS POSSIBLE.
- LGT: RWY 27 PAPI NSTD, RIGHT SIDE.
- A-GEAR - NML BAK-12B(B) CONFIGURATION: APCH END DOWN, DEP END UP; 20 MIN PN TO RECONNECT APCH END CABLE.
- JASU - (AM32A-60A) 6(A/M32A-86).
- FUEL: A++ AVBL LTD, EXP POSSIBLE GND DELAY FOR REQ EXCEEDING 10,000 GAL.
- FLUID - LPOX LOX.
- TRAN ALERT - EXTREMELY LTD.
- MILITARY USE: OPR 1400-2200Z++ MON-FRI EXC HOL, CK NOTAM FOR CURRENT AIRFIELD HR.
- RSTD: PPR CTC VOLK FLD DSN 871-1205, C608-427-1205. ISSUED PPR VALID FOR ETA +/- 1 HR. EARLY/LATE ARR/DEP MUST BE COORD. AFTER HR RE-COORD OR CNL WILL BE PASSED TO BASE OPS SBY PERS C608-343-0104.
- CAUTION - WHEN WIND IS FR S/SW EXP POSSIBLE LOW LEVEL WIND SHEAR 1 TO 3 NM ON FINAL TO RWY 27. DUE TO TACTICAL ACFT RQR, BAK-12 CABLE MAY BE IN POSN FOR RWY 09-27 SIMULTANEOUSLY.
- CAUTION: TWY E, F AND G UNLGTD, UNLTD DAYTIME VFR USE, FOLLOW ME RQR FOR DAY IFR AND NGT IFR/VFR USE. TWY E AND TWY F CLNC VIOLATION - AEROSPACE GND EQPT LCTED WI 58 FT FM TWY CNTLN.
- TFC PAT: COPTER RECTANGULAR 1500'.
- MISC: FIRST 1600 FT RY 09 AND FIRST 1600 FT RY 27 GROOVED CONCRETE, MID 5800 GROOVED ASPHALT. STD USAF RSRS APPLIED.
- RSTD: PPR MUST BE RCV NLT 48 HR IN ADVANCE OF ACFT ARR OR BY 2200Z++ ON FRI FOR THE FOLLOWING MON.
- REMARKS-MISC: BASE OPS DSN 871-1205, C608-427-1205.
- CAUTION: USE EXTREME CAUTION FOR EXTENSIVE UNMANNED AERIAL SYSTEMS (UAS) OPS IN VCNTY.
- REMARKS-CAUTION: BASH PHASE I- ALL DATES NOT DESIGNATED AS PHASE II. PHASE II IN EFFECT 1 SEP TO 30 NOV AND 1 MAR TO 31 MAY.
- CAUTION: NSTD AIRFIELD PAINT MARK NEAR BAK-12 TAPE CONNECTORS AND DONUTS FOR RWY 09/27. THE MARK IS A 4 IN WIDE YELLOW HALF- MOON ARC AROUND THE SHEAVE, WITH ONE MARK AT EACH ENTRANCE.
- MISC: LAVATORY SVC UNAVBL.
- CAUTION: TSNT CREWS BE ADZD ARFF CAT 9 WITH 9700 GALLONS.
- WHEN ATCT CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
- CAUTION: NSTD AIRFIELD PAINT MARK ON EAST APR TO ID PRKG SPOTS.
- COMSEC UNAVBL, MNM OVNGT CLASSIFIED STORAGE AVBL FOR TSNT AIRCREWS.
- RSTD: TWY F 50 FT WIDE; AIRCREWS MUST CTC AIRFIELD MGMT TO UTILIZE TWY E OR TWY F.
- VFR PAT LTD TO 3 ACFT FR 0559Z - 1400Z+.
- TWY G LTD TO WINGSPAN LESS THAN 44 FT AND HELI TFC.
Lighting
- SS-SR. ROTG BCN SCHED SS-SR WHEN TWR OPERATIONAL.
- WHEN ATCT CLSD ACTVT MALSR RWY 09; ALSF-1 RWY 27; PAPI RWY 9 & 27; HIRL RWY 09/27 - CTAF OR 239.25.
- SFL NOT AVAILABLE ON PCL, AVAILABLE UPON REQUEST WITH TWR/BASE OPS.
Contact
- DSN 871-1205.
Attendance
- EXC HOL, CK NOTAM FOR CURRENT AFLD HR.
Embed KVOK weather on your site free widget for schools, clubs & FBOs
Live METAR, flight category, and favored runway for KVOK — paste this into your website's HTML. It updates automatically and stays free.
More widgets — crosswind, E6B, density altitude — on the embed page.
Nearby airports
Loading nearby conditions…
Also nearby: 82C Mauston New Lisbon Union Airport (8 NM) · Y72 Bloyer Field (10 NM) · 2WN5 Murmuring Springs Airport (private) (11 NM) · 67WI Accurate Airport (private) (11 NM) · 60C Elroy Municipal Airport (14 NM)
About KVOK
Volk Field (VOK · KVOK) is an airport in Camp Douglas, WI, at 912 ft MSL. It has 1 runway, the longest 9,000 ft, with a control tower. This page shows live METAR/TAF weather, runway crosswinds, frequencies, navaids, and FAA charts for KVOK, refreshed from the Aviation Weather Center and FAA NASR.
Does KVOK have a control tower?
Yes. Volk Field has an operating FAA control tower. See the Comms & NavAids section for tower and ground frequencies.
What is the longest runway at KVOK?
Volk Field has 1 runway; the longest is 9,000 ft. See the Runways section for headings, surface, and lighting.
Where is KVOK?
Volk Field is in Camp Douglas, WI, at an elevation of 912 ft MSL. Coordinates: 43.9390, -90.2534.
